artis 3000U A3+ LED UV Printer

AMAZING 3D TEXTURED AND EMBOSSED PHOTO REALISTIC PRINTING

Direct printing on dark and transparent materials
Optimal for printing on both rigid and flexible substrates
Ideal for printing on mobile devices covers and cases, personalized giveways and promotional items (pens, USB sticks, name tags, accessories...etc...), trophies, PVC card printing, wood printing, industrial labels and packaging

ENGINEERED TO IMPRESS

Operation convenience with the unique lateral loading architecture
Optimal cost saving with the continuous ink supply system
High definition printing on plastics due to the anti-static module
Extended printhead life time with the flash on ink firing technology
Simplified operation and maintenance
Safe operation with the automated printhead cleaning system
Built in liquid cooling control system
Auto repeat control panel print function
Versatile printing with the LED UV module power level adjustment

Download Datasheet

Print Speed		6 min for Full A3 size @1440 x1440 dpi
Printing Technology		UV LED
Ink		artisink DTS3 (C,M,Y,K,W), LC, LM, V available
Media	Application	Mobile devices covers and cases, personalized giveaways, promotional items (pens, USB sticks, name tags, accessories), trophies, PVC card printing, wood printing, industrial labels and packaging
	Media Size	A3+, 280*600 mm
	Thickness	Up to 90 mm (3.54 in)
	Cylindrical	Optional
Printing	Printing modes	4 pass 6 pass 8 pass
	Print Resolution	Up to 5760*1440dpi
	Print Head	On demand Epson DX5 piezo electric printhead. Made in Japan

Connectivity	Nozzles	Variable dot size printing technology, starting from 1.5 pl and up to 21 pl
	Ports	USB 2.0
	Operating systems	Windows
Dimensions	Depth x Width x Height	Printer 645 x 690 x 490 mm (25.39 x 27.16 x 19.29 in) Shipping 880 x 990 x 650 mm (34.64 x 38.97 x 25.59 in)
Weight		Printer 120 Kg, Shipping 140 Kg
Content of the box		artis 3000 U, USB cable, Power cable, User manual book, spare parts package, Driver CD, Ink Chips, Ink tunnels, SCM Cable, Power fuse, RIP Software, Extra back-up Dumper
Environmental ranges		10 - 35 °C
Power consumption and requirements		~75W, Input voltage (auto ranging) 110V/220V 50 - 60 HZ
Certification		CE certified
Warranty		One year limited warranty

Flash On Ink Firing System

Intelligently powered by ArtisPrinters FOIF system, the artis 3000 printer electronically activates the UV LEDs when firing ink only. As a result, the life time of the printhead and the UV LEDs is maximized. FOIF also protects the entire ink system including the ink pump, the wiper, the damper, and the cap tops.

Continuous Ink Supply System

Unlike ink cartridges, this system allows for 100% utilization of available ink.

Reformulated LED UV inks

Advanced TIO2 in 80 namos to keep the ink fluency including W color.

Unique lateral loading platform design

Unique design ensuring a better visibility of the output. Ideal for space constraints workplaces.

Control On Demand System

Designed for an enhanced flexibility and simplicity, artisJet COD digitally controls the operation of the LED UV system. It automatically adapts to different materials and working environments. COD controls the UV Curing mode( Bi-directional, Uni-directional). This will result in delivering an optimal printing quality and drying time.

Safe Water Cooling Control System

Designed for operational extra safety and simplicity, artisJet’s SWCC system is built on a digital industrial chilling system. It recycles 300ml of an industrial cooling liquid. The liquid level is visible and refillable on demand to avoid the wear out of the UV LEDs.

Automated printing height adjustment

Equipped with sensors to automatically adjust the head height and reduce the print head strikes. Automatic ink system maintenance and recycling; holiday module.

Green air purification system

Reduces the smell and boasting with the air purification and the particle collection system.

Custom PVC Cards Printing	Max printable card size: 1830 cm 24 cards / 7 min / pass Friendly cost: 0.008$ / 5.48.6 cm card Raised and glossy color performance Supporting VDP direct print On demand printing trays
Phone / Pad Covers Printing	Print on any model and brand 9 pcs / IPhone 6+ cover / pass Cost effective: 0.016$ / phone case Supporting any type of files Multiple substrates type printing Photo quality and glitter finishes
Awards Printing	Direct printing on any material Print cost 0.05$/1520CM 6pcs (1520CM)/9 minutes / pass Raised colors for key messages True vivid color performances Low cost and fast print solution
Custom Braille Printing	Letter thickness up to 10 mm Multiple media substrates rapport Varnish and glossy print capability Multiple layers for inkjet height Eco-friendly color delivery Durable 3D characters print
USB Disk Printing	Print to wood, metal & more Shining and strong color delivery 3D textured print easily achieved Print on dark / light substrates Print logo, text and images

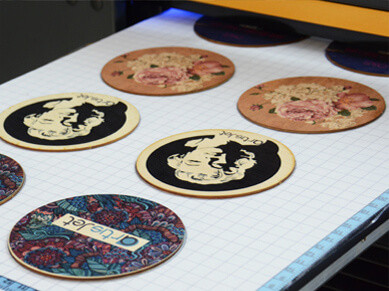

Custom Wood Coasters	Any wood shape and texture Materials thickness availability of 9 cm Raised colors direct print on wood Durable and resistant colors Preserving natural wood texture Both indoor and outdoor displays

artis 3000U A3+ LED UV Printer

Printing Specifications

Printer Specifications

Technology

Possible Applications
